The figure illustrates results for the Arginase Gold assay technology, for measuring inhibition of Arginase 1 inhibitors

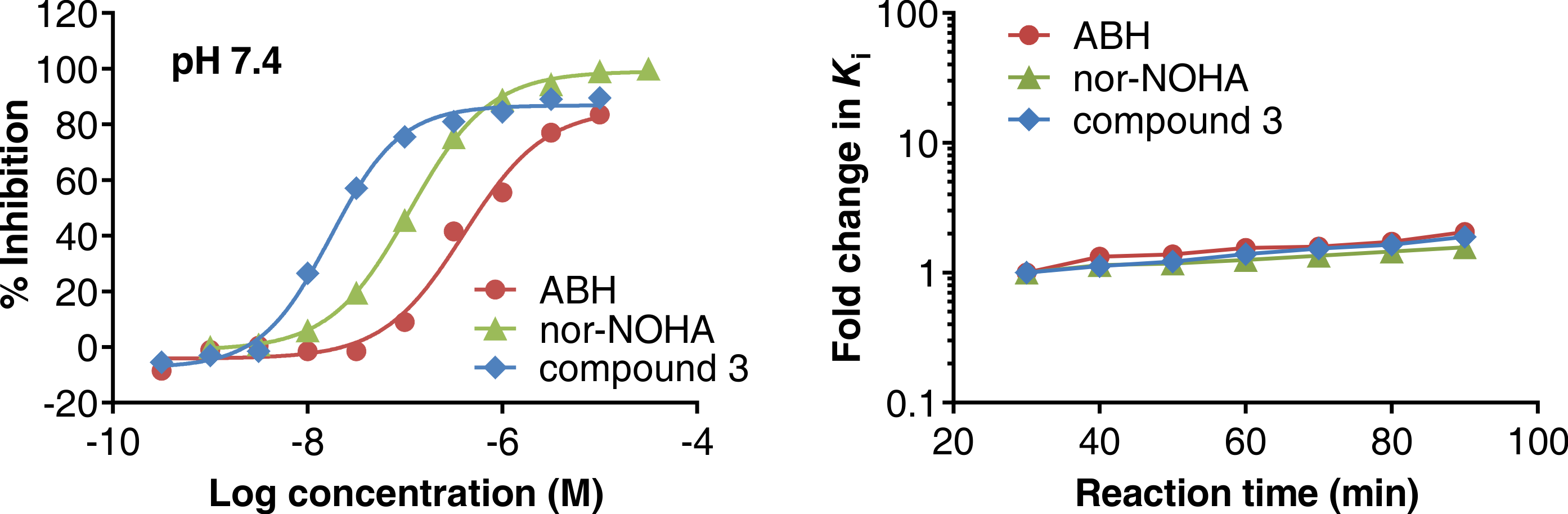

May 18, 2020: Dose response curves of reference inhibitors in the Arginase Gold™ assay (left) and inhibitory constant (Ki) as function of reaction time (right).
Adapted from Grobben et al. (2020).

Screening of Arginase-1 Inhibitors using Arginase Gold™

Oss – May, 18th, 2020 – Arginase-1 is a promising new drug target for cancer immunotherapy. A novel assay technology for high-throughput screening (HTS) of Arginase-1 has been published in SLAS Discovery (Grobben et al., 2020) by researchers from NTRC in collaboration with Pivot Park Screening Centre (PPSC). The assay technology is known as Arginase Gold™.

The enzyme Arginase-1 has a regulatory role in T cell and natural killer cell-mediated immunity in the tumor microenvironment by decreasing levels of the amino acid L-arginine, which is critical for an effective anti-tumor immune response. Preclinical studies have shown that inhibition of Arginase-1 increases tumor immune cell infiltration and decreases tumor growth in model systems for cancer (Steggerda et al., 2017; Czystowska-Kuzmicz et al., 2019Miret et al., 2019). The first small molecule Arginase-1 inhibitor CB-1158 (INCB001158) is currently being investigated in clinical trials for the treatment of advanced and metastatic tumors as a single agent, and in combination with chemotherapy, immune checkpoint therapy and the IDO1 inhibitor epacadostat (

Arginase Gold™ is a homogenous (mix-and-measure) enzyme activity assay for Arginase-1, making use of a fluorescent probe developed at NTRC. The assay measures the conversion of L-arginine into its substrate L-ornithine by a decrease in fluorescent signal, thus generating a gain of signal in the presence of inhibitors. In the article, which appeared online today in SLAS Discovery (Grobben et al., 2020), the Arginase Gold™ assay was validated by side-by-side profiling of reference inhibitors in a traditional colorimetric, multi-step urea assay and in the Arginase Gold™ assay. The application in automated HTS was demonstrated by screening a library of small synthetic chemicals at PPSC and deconvolution of active hit compounds. Besides its robustness, easiness to use, and scalability, an appealing characteristic of the Arginase Gold™ assay is that it can be used in a kinetic mode, thus enabling the study of slow-on/slow-off inhibitors, that is, compounds with a long target residence time (Grobben et al., 2020).

Literature references

Grobben et al. (2020) High-throughput fluorescence-based activity assay for Arginase-1, SLAS Discovery, published online first, 15 May 2020.

Steggerda et al. (2017) Inhibition of arginase by CB-1158 blocks myeloid cell-mediated immune suppression in the tumor microenvironment, Journal for Immunotherapy of Cancer, 5: 101.

Czystowska-Kuzmicz et al. (2019) Small extracellular vesicles containing arginase-1 suppress T-cell responses and promote tumor growth in ovarian carcinoma. Nature Communications, 10: 3000.

Miret et al. (2019) Suppression of myeloid cell arginase activity leads to therapeutic response in a NSCLC mouse model by activating anti-tumor immunity, Journal for Immunotherapy of Cancer, 7: 32.

see for NCT02903914, NCT03314935 and NCT03361228

Grobben et al. (2020) Structural insights into human Arginase-1 pH dependence and its inhibition by the small molecule inhibitor CB-1158, Journal of Structural Biology X, 4: 100014
